A wax injection machine produces accurate wax patterns used in investment casting. The right machine improves dimensional accuracy, reduces reject rates, lowers labor requirements, and stabilizes shell quality. Automated systems also help foundries achieve better consistency, lower power consumption, and higher production output.

Introduction

Pattern defects often become casting defects. A properly selected wax injection machine helps maintain dimensional stability, improves shell quality, and reduces production losses. With decades of foundry experience, Laxminarayan Technologies continues to provide dependable solutions for investment casting manufacturers.

Your wax room sets the tone for the entire investment casting line. Poor pattern quality creates downstream problems in shell building, dewaxing, and finishing. Good patterns do the opposite. They make the entire foundry breathe easier.

What Is a Wax Injection Machine?

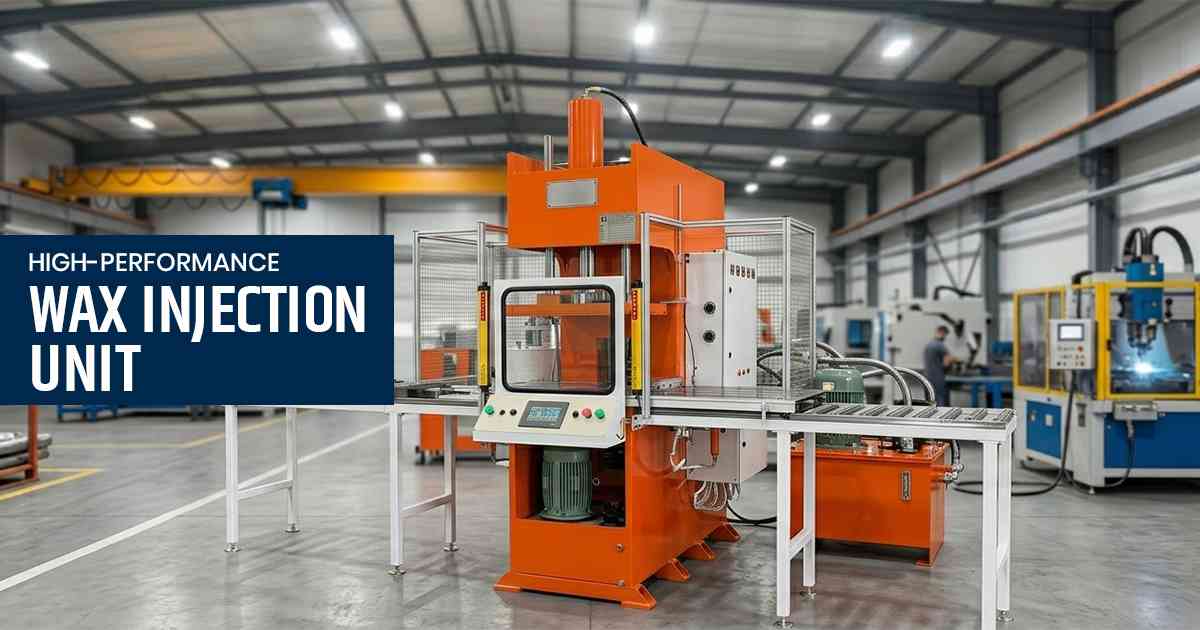

A wax injection machine is equipment used in the investment casting process to inject molten wax into metal dies under controlled pressure and temperature, producing precise wax patterns that later become ceramic molds for metal castings.

According to investment casting standards, consistent wax pattern dimensions directly influence casting accuracy, surface finish, and shell integrity.

Why Does Wax Pattern Quality Matter?

The wax pattern is the first physical component in the lost-wax process. If the pattern changes size, the casting changes too.

Common problems include:

• Dimensional variation
• Sink marks
• Air entrapment
• Short filling
• Pattern distortion
• Wax cracking

Look, a blocked nozzle behaves like a clogged syringe. Pressure rises, filling becomes uneven, and defects appear where you least expect them.

Small mistakes. Expensive consequences.

How to Select the Best Wax Injection Machine

1. Temperature Control

Stable wax temperature is essential.

Wax that overheats may shrink excessively. Cold wax may not fill thin sections properly. Most investment casting waxes operate between 60°C and 75°C depending on formulation.

2. Injection Pressure Control

Consistent pressure ensures complete cavity filling. Modern machines allow precise pressure adjustment for different dies and pattern sizes.

3. Automation Level

The level of automation directly affects production efficiency and consistency. Manual wax injection machines depend heavily on the operator, which means pattern quality can vary from one shift to another. They are generally suitable for small production batches where flexibility is more important than output volume.

Automatic wax injection machines, on the other hand, offer much better process control and cycle repeatability. Injection pressure, temperature, and cycle timing remain consistent, resulting in uniform wax patterns and lower rejection rates.

Manual systems usually require more labor and constant operator involvement. Automated machines reduce labor dependency and support higher production volumes with greater consistency. They also provide excellent repeatability, which is especially important for precision investment casting applications.

Laxminarayan Technologies has observed labor savings approaching 40% in automated foundry operations, particularly in facilities running multiple dies continuously and producing large production batches.

4. Maintenance Accessibility

Nozzle cleaning matters. Heater replacement matters. If maintenance takes half a shift, production suffers.

Simple access saves time.

Why Choose an Automatic Wax Injection Machine?

An automatic wax injection machine for investment casting offers several advantages:

• Better dimensional consistency
• Reduced operator variation
• Faster cycle times
• Lower rejection rates
• Reduced labor costs
• Higher production output

Truth is, automation doesn't eliminate problems. It eliminates repeating the same problems every shift.

Our ISO 9001 manufacturing practices and process controls help customers improve productivity while reducing operational variability.

How Does the Lost Wax Injection Process Work?

Step 1: Melt the wax

Wax is heated to the required temperature.

Step 2: Inject the wax

The wax injection machine for lost wax casting process injects wax into the die cavity under pressure.

Step 3: Cooling

The wax solidifies inside the die.

Step 4: Pattern removal

The finished pattern is carefully ejected.

Step 5: Assembly

Patterns are assembled onto a sprue to form a cluster.

A bad pattern is like baking a cake at the wrong temperature. The outside looks acceptable. The inside tells a different story.

Real-World Applications

Our equipment supports several industries:

• Aviation turbine components
• Industrial gas turbine parts
• Pump and valve castings
• Automotive precision castings
• Ceramic-core complex geometries

Laxminarayan Technologies has supplied systems for demanding aerospace and IGT applications where dimensional control is critical.

Detailed machine information is available at:
()

Ceramic core applications may also benefit from specialized solutions available through ceramicinjector.com.

Common Challenges and Practical Solutions

Wax Dimensional Instability

Uneven cooling causes shrinkage variation.

Solution: Controlled temperature and injection parameters.

Shell Cracking

Distorted patterns create uneven ceramic shell thickness.

Solution: Stable pattern dimensions.

High Labor Costs

Manual handling increases operator dependency.

Solution: Automated injection systems can reduce labor requirements by approximately 40%.

Power Consumption

Older equipment consumes excessive energy.

Laxminarayan Technologies has developed systems capable of achieving power savings approaching 50% in wax, shell, and dewax operations.

Final Thoughts

Selecting the right wax pattern injection machine affects every stage of investment casting. Pattern quality influences shell building, dimensional accuracy, and final casting performance.

Since 1986, Laxminarayan Technologies has designed complete investment casting solutions for foundries worldwide. Our experience with turnkey foundry projects, automated systems, and demanding aerospace applications helps customers improve consistency while reducing operating costs.

Good wax patterns rarely attract attention.

Bad ones always do.

Frequently Asked Questions

What is a wax injection machine used for?

A wax injection machine produces precise wax patterns used in investment casting. The machine injects molten wax into metal dies under controlled temperature and pressure to create patterns for ceramic shell production.

What is the ideal temperature for investment casting wax?

Most investment casting waxes operate between 60°C and 75°C, depending on wax formulation, die design, and pattern geometry. Maintaining stable temperature improves dimensional consistency.

Why choose an automatic wax injection machine?

Automatic machines provide repeatable injection cycles, lower labor requirements, reduced rejection rates, and improved dimensional accuracy compared to manual systems.

How often should a wax injection machine be maintained?

Regular inspection of heaters, nozzles, pressure systems, and temperature controls is recommended. Preventive maintenance helps avoid downtime and maintains pattern quality.
